Metal Case Bundle and USB-SATA board bundle for the RaspiBlitz


Metal Case Bundle and SATA-USB board bundle for the RaspiBlitz

Categories: , ,

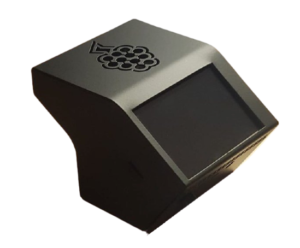

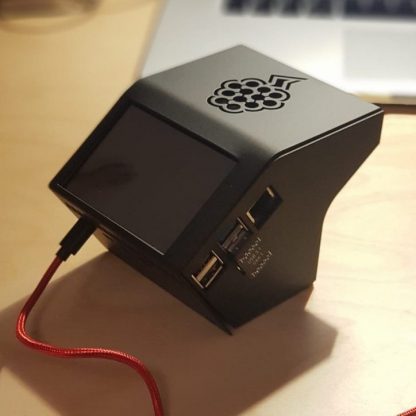

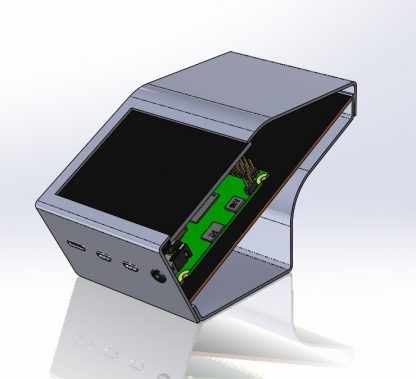

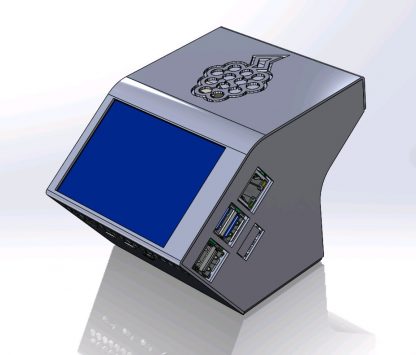

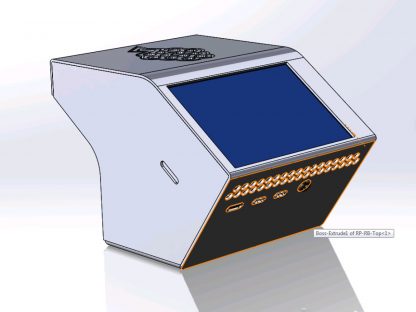

About the case:

The case is made of powder coated steel, specifically designed for the RaspiBlitz to hold the following parts:

  • Raspberry Pi 4
  • X825 v1.5 SATA-USB expansion board (included)
  • 2.5″ SSD (1 TB recommended)
  • 3.5″ LCD Touch Screen
  • Heatsink

Provides increased physical security:

  • tough, steel material
  • cannot be opened without powering off
  • place to attach a Kensington Lock

Instructions on how to build it yourself are on GithHub:

The parts from the RaspiBlitz shopping list are all compatible except we use the SATA-USB expansion board have more options to choose a fan due to the presence of additional 5V connectors.

For WiFi access the break-out part of the case (near the Raspberry Pi WiFi antenna) needs to be popped out. For that a Lightning Opener Tool is needed or if you leave comment on purchase we can break the part out before shipping.

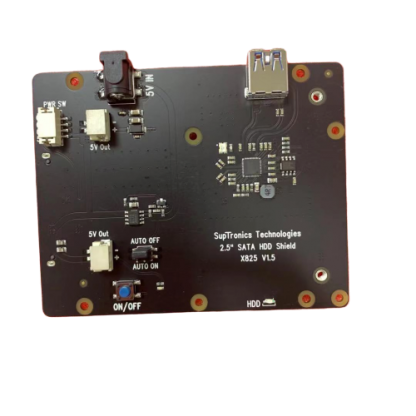

About the USB-SATA board:

The X825 v1.5 SATA-USB expansion board sits inside the ZKDS RaspiBlitz case.

Allows a 2.5″ SATA SSD to be powered and connected to the Raspberry Pi 4.

Provides a stable, high speed connection via the USB3.1 bridge.

Thoroughly tested for compatibility.

Any questions please ask on the Contact Form or on Twitter: @DIYnodes
